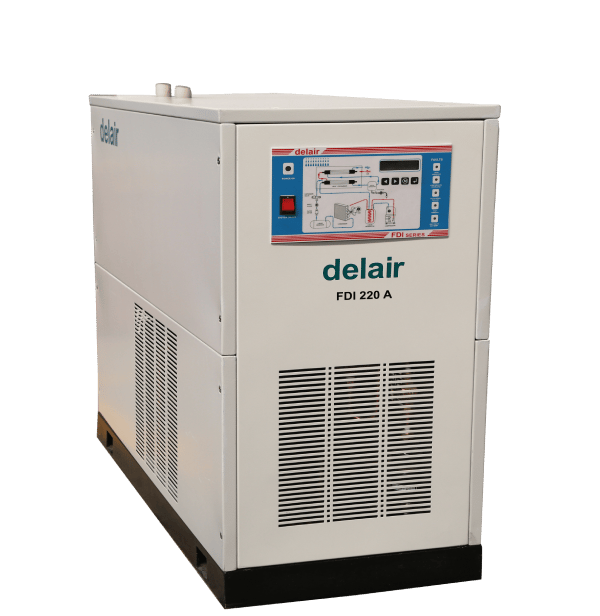

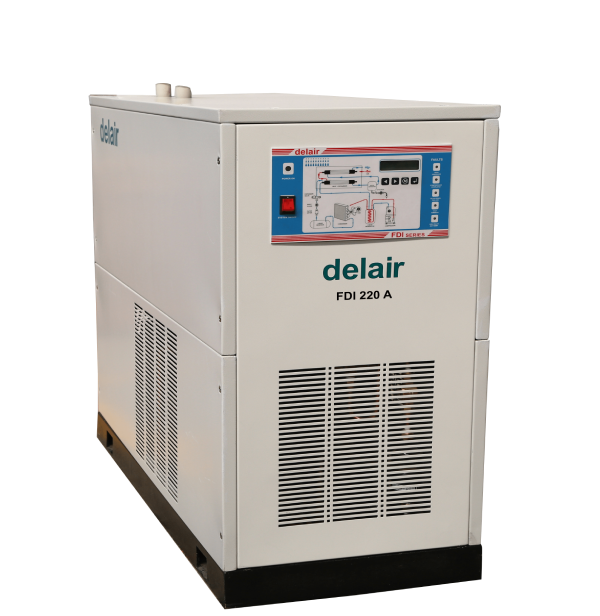

FDI Series – Standard Dryers

Overview
Delair Refrigeration type Dryer operates on the method of cooling the air to near freezing point to remove the moisture.

Range

18 m3/hr to 6,000 m3/hr (10.6 cfm to 3540 cfm)

How Does it Works

How does it works?

Delair Refrigeration type Dryer
operates on the method of cooling the air to near freezing point to remove the moisture. The cold air is reheated by the incoming air to approximately 10°C below the incoming compressed air temperature at nominal conditions.
The Refrigeration Dryer consists of an air drying unit with centrifugal cum demister pad condensate separator and a refrigeration circuit. The refrigeration circuit consists mainly of a compressor, a condenser, a receiver, a volume liquid accumulator with
liquid refrigerant and an evaporator.
The air drying unit consists of two
kinds of heat exchangers, one is air to air heat exchanger and the second is refrigerant to the air heat exchanger.

THE HEART OF THE SYSTEM IS THE PROPRIETARY HEAT EXCHANGER WHICH MAKES IT OUTPERFORM OTHER DRYERS

The function of the air to air heat the exchanger is to lower the load on the refrigerant system and secondly by warming the outgoing cold air pipelines to the required temperature.

The refrigerant-air heat exchanger(s) further cools the air to the required temperature thus condensing the water vapor from the air, which is automatically drained.

Key Features / Benefits

  • Available in 45 standard models
  • Provides best pressure dew point from +3°C to +4°C
  • Microprocessor based delsmart LCD card to read out dew point, operating status, faults indication
  • Proprietary Heat Exchanger
  • Filled with Eco-friendly refrigerant
  • Energy saving
  • Designed especially for tropical conditions
  • Unique Volume Liquid Accumulator
  • Compact design
  • According to ISO 7183 Compressed Refrigerant Air Dryer

OPTIONAL FEATURES

  • Available in both option with automatic expansion valve and
    with the thermostatic expansion valve
  • Explosion proof controls for offshore application
  • Delair also manufactures standard high-pressure Refrigeration
    Dryers for PET industry/PET blowing application

STD. WORKING PARAMETERS

  • Pressure : 7.0 kg/cm (g)
  • Max. Working Pressure : 14kg/cm (g)
  • Air Inlet Temperature : 45°C
  • Ambient Temperature : 45°C
  • Water Pressure : 3-6 kg/cm (g)
  • Water Inlet Temperature : 32°C

Brochure

Range

MODEL No. CAPACITY IN M3/HR.PRESSURE IN BAR (G)
CMH CFM
FDI-18 A 18 10.6
FDI-54 A 54 32
FDI-110 A 110 65
FDI-150 A 150 88
FDI-180 A 180 106
FDI-220 A 220 130
FDI-290 A 290 170
FDI-360 A 360 212
FDI-430 A 430 254
FDI-540 A 540 318
FDI-600 A 600 355
FDI-720 A 720 424
FDI-850 A 850 500
FDI-970 A 970 572
FDI-1060 A 1060 624
FDI-1150 A 1150 678
FDI-1270 A 1270 749
FDI-1350 A 1350 795
FDI-1690 A 1690 996
FDI-1910 A 1910 1124
FDI-2160 A 2160 1271
FDI-2550 A 2550 1500
FDI-2880 A 2880 1695
FDI-3000 A 3000 1770
FDI-3340 A 3340 1971
FDI-4310 A 4310 2543
FDI-6000 A 6000 3540
FDI-540 W 540 318
FDI-600 W 600 355
FDI-720 W 720 424
FDI-850 W 850 500
FDI-970 W 970 572
FDI-1060 W 1060 624
FDI-1150 W 1150 678
FDI-1270 W 1270 749
FDI-1350 W 1350 795
FDI-1690 W 1690 996
FDI-1910 W 1910 1124
FDI-2160 W 2160 1271
FDI-2550 W 2550 1500
FDI-2880 W 2880 1695
FDI-3000 W 3000 1770
FDI-3340 W 3340 1971
FDI-4310 W 4310 2543
FDI-6000 W 6000 3540



Technical Specification

Refrigeration Dryer -FDI Series Standard Dryer
