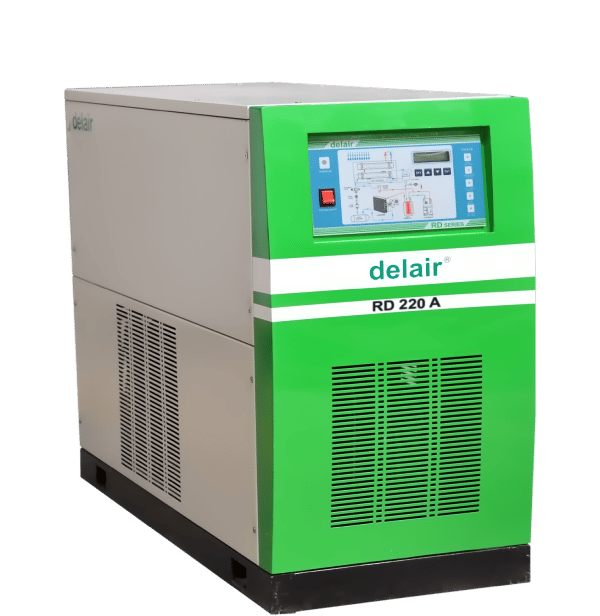

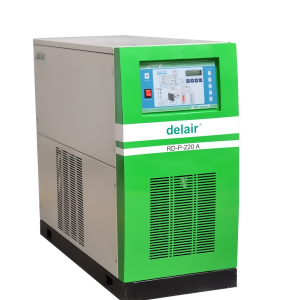

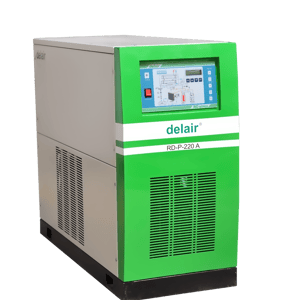

RD Series – Standard Dryers

Overview
Refrigeration Dryers are used where application require ADP upto -20°C (-4°F).

Range

18 chm to 6000 cmh (10.6cfm to 3540cfm)

How Does it Works

How does it works?

Delair Refrigeration type Dryer operates on the method of cooling the air to near freezing point to remove the moisture and the cold air is reheated by the incoming air to approximately 10°C below the incoming compressed air temperature at nominal conditions.

The Refrigeration Dryer consists of an air drying unit with centrifugal cum demister pad condensate separator and a refrigeration circuit.

The refrigeration circuit consists mainly of a compressor, a condenser, a receiver, a vapour liquid accumulator with liquid refrigerant and an evaporator.The air drying unit consists of two kinds of heat exchangers, one is air to air heat exchangers and second is refrigerant to air heat exchangers.

THE HEART OF THE SYSTEM IS THE SPECIAL FOAMED IN, PATENTED HEAT EXCHANGER WHICH MAKES IT OUTPERFORM OTHER DRYERS.

The function of the air to air heat exchanger is to lower the load on the refrigerant system and secondly by warming the outgoing cold air pipelines to the required temperature.

The refrigerant to air heat exchanger(s) further cools the air to the required temperature thus condensing the water vapour from the air, which is automatically drained.

Key Features / Benefits

  • Available in 45 standard models
  • Capacities from 10.6 cfm to 3540 cfm
  • Microprocessor based delsmart LCD card to readout dew point, operating status, faults indication
  • Provides pressure dew points range to 3-4°C
  • Proprietary Heat Exchanger
  • Certified and reliable performance
  • Compact design
  • According to ISO 7183 Compressed Refrigerant Air Dryer

OPTIONAL FEATURES

  • Filter and total dryer bypass line with valves
  • Special Delair filters for removal of water, oil mists, oil vapour and dust particles with electronically operated drain valves
  • Explosion proof controls for offshore application

STD. WORKING PARAMETERS

  • Pressure : 7.0 kg/cm2(g)
  • Max. Working Pressure : 14kg/cm2(g)
  • Air Inlet Temperature : 38 Deg. C
  • Ambient Temperature : 38 Deg. C
  • Water Pressure : 3-6 kg/cm2(g)
  • Water Inlet Temperature : 32 deg. C

Brochure

Range

MODEL No. CAPACITY IN M3/HR.PRESSURE IN BAR (G)
CMH CFM
RD-18 A 18 10.6
RD-54 A 54 32
RD-110 A 110 65
RD-150 A 150 88
RD-180 A 180 106
RD-220 A 220 130
RD-290 A 290 170
RD-360 A 360 212
RD-430 A 430 254
RD-540 A 540 318
RD-600 A 600 355
RD-720 A 720 424
RD-850 A 850 500
RD-970 A 970 572
RD-1060 A 1060 624
RD-1150 A 1150 678
RD-1270 A 1270 749
RD-1350 A 1350 795
RD-1690 A 1690 996
RD-1910 A 1910 1124
RD-2160 A 2160 1271
RD-2550 A 2550 1500
RD-2880 A 2880 1695
RD-3000 A 3000 1770
RD-3340 A 3340 1971
RD-4310 A 4310 2543
RD-6000 A 6000 3540
RD-540 W 540 318
RD-600 W 600 355
RD-720 W 720 424
RD-850 W 850 500
RD-970 W 970 572
RD-1060 W 1060 624
RD-1150 W 1150 678
RD-1270 W 1270 749
RD-1350 W 1350 795
RD-1690 W 1690 996
RD-1910 W 1910 1124
RD-2160 W 2160 1271
RD-2550 W 2550 1500
RD-2880 W 2880 1695
RD-3000 W 3000 1770
RD-3340 W 3340 1971
RD-4310 W 4310 2543
RD-6000 W 6000 3540



Technical Specification

Refrigeration Dryer – Standard Dryer
