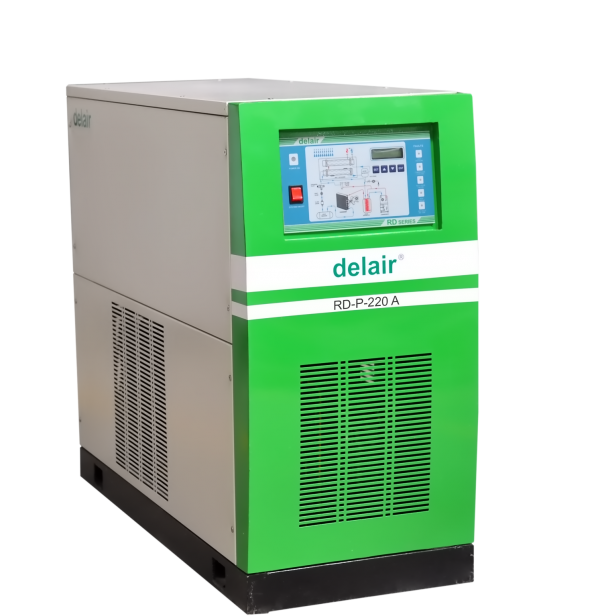

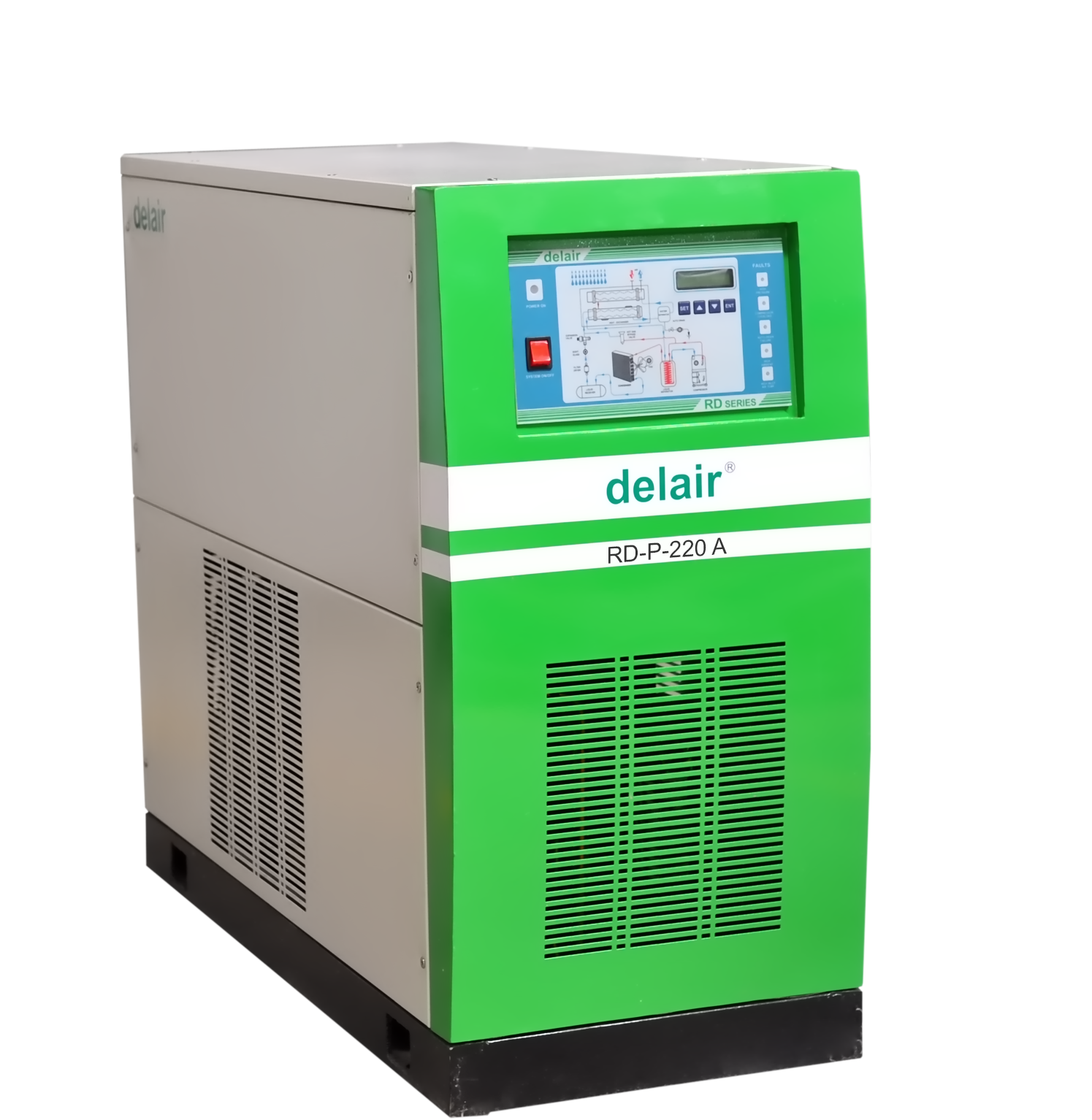

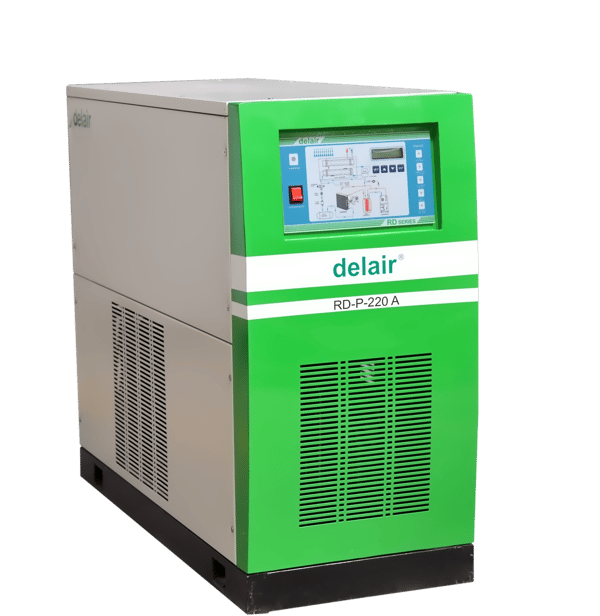

RD Series – Delpet Dryers

Overview

Refrigeration Dryer – Delpet series are high pressure Dryer. These Dryers are specially designed for PET Bottle manufacturing process. Compressed air is used to blow the bottles/containers to the desired shape and size.

Range

10.6 cfm to 500 cfm (18 m3/hr to 850 m3/hr)

How Does it Works

How does it work?

Delair Refrigeration Dryers operate at high pressure upto 40 bar on the method of cooling the air to near freezing point to remove the moisture and the cold dry air is reheated by incoming air to approximately 10°C below the incoming compressed air temperature at nominal conditions.

The dryer consists of an air drying unit with centrifugal cum demister pad condensate separator and a refrigeration circuit. The refrigeration circuit consists mainly of a compressor, a condenser, a receiver, a vapour liquid accumulator with liquid refrigerant and an evaporator. The air drying unit consists of two kinds of heat exchangers, one is air to air heat exchangers and second is refrigerant to air heat exchangers.

THE HEART OF THE SYSTEM IS THE SPECIAL FOAMED IN, PATENTED HEAT EXCHANGER WHICH MAKES IT OUTPERFORM OTHER DRYERS.

The function of the air to air heat exchanger is to lower the load on the refrigerant system and secondly by warming the outgoing cold air pipelines to the required temperature.

The refrigerant to air heat exchanger(s) further cools the air to the required temperature thus condensing the water vapour from the air, which is automatically drained.

Key Features / Benefits

  • Available in 17 standard models
  • Capacities from 10.6 cfm to 500 cfm
  • Microprocessor based delsmart Colour led card to readout dew point, operating status and faults indication
  • Provides pressure dew points range to 3-4°C
  • Unique, proprietary, foamed in Heat Exchanger
  • Out performs other Dryers
  • Certified and reliable performance
  • Compact design

OPTIONAL FEATURES

  • Filter and total dryer bypass line with valves
  • Special Delair Filters for removal of water, oil mists, oil vapour and dust particles with electronically operated drain valves
  • Explosion proof controls for offshore application

STD. WORKING PARAMETERS

  • Pressure: 25, 40 & 60 kg/cm2(g)
  • Air Inlet Temperature: 38°C
  • Ambient Temperature: 38°C
  • Water Pressure: 3-4 kg/cm2(g)
  • Water Inlet Temperature: 32°C

Technical Specification

Refrigeration Dryer – Delpet Series



Range

MODEL No. CAPACITY IN M3/HR.PRESSURE IN BAR (G)
25
40
60
RD-P-18 A
12
13
13
RD-P-54 A
37
38
38
RD-P-110 A
75
77
78
RD-P-150 A
102
104
106
RD-P-180 A
123
125
127
RD-P-220 A
151
153
156
RD-P-290 A
197
201
204
RD-P-360 A
246
250
254
RD-P-430 A
295
300
305
RD-P-540 A
369
375
382
RD-P-600 A
412
419
426
RD-P-720 A
492
500
509
RD-P-850 A
580
590
600
RD-P-540 W
369
375
382
RD-P-600 W
412
419
426
RD-P-720 W
492
500
509
RD-P-850 W
580
590
600
